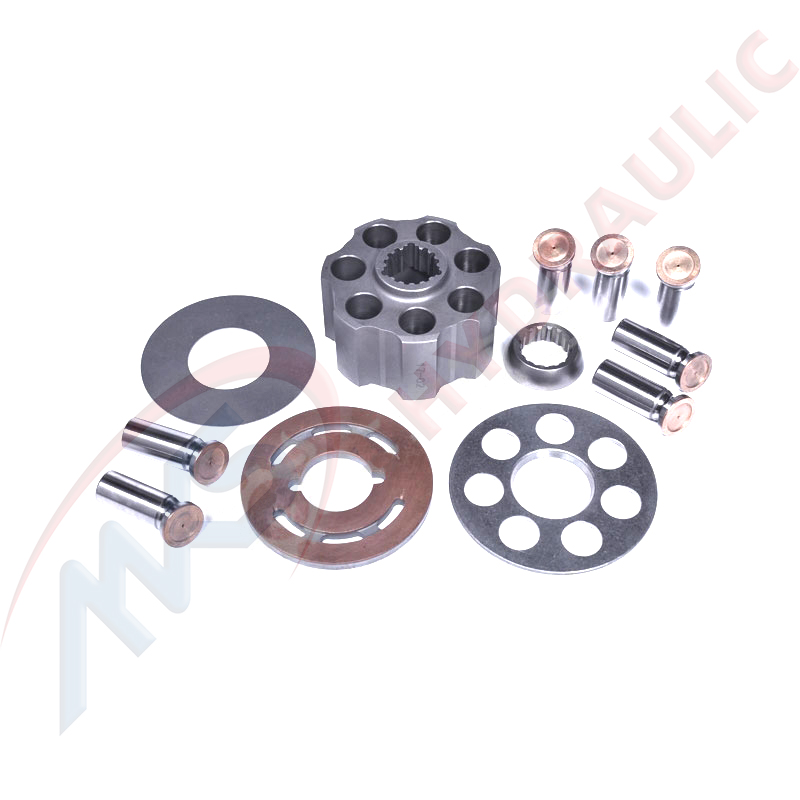

PC60-7回转 PC60-6 PC60-7 PC78US-6 SWING

1.缸体 cylinder block

2.柱塞 piston shoe

3.回程盘 retainer plate

4.配油盘 valve plate

5.止推板 thrust plate

C60-7 PC200-3/5  PC220-6/7 PC200-6/7  PC300-6/7 PC360-7 PC400-7

1.缸体 cylinder block

2.柱塞 piston shoe

3.配油盘 Valve plate

4.球铰 Ball guide

5.回程盘 retainer plate

PC45R-8

1.缸体 cylinder block

2.柱塞 piston shoe

3.球铰 ball guide

4.回程盘 retainer plate

5.配油盘 valve plate

6.止推板 thrust plate

PC200-8 回转

1.缸体 cylinder block

2.柱塞 piston shoe

3.配油盘 Valve plate

4.回程盘 retainer plate

5.中心杆 center pin

C200-7回转

1.缸体 cylinder block

2.柱塞 piston shoe

3.配油盘 Valve plate

4.回程盘 retainer plate

5.中心杆 center pin

6.传动轴 drive shaft

HPV75/90/95/132/140/165

1.缸体 cylinder block

2.柱塞 piston shoe

3/4.配油盘 Valve plate

5/6.回程盘  retainer plate

7.球铰 ball guide

8. 摇摆 swash plate

9. 摇摆座 support
